The C-Series represents an extremely versatile machine, equipped with a professional system that connects all components through EtherCat technology, offering functionality, precision, and reduced costs for your parts.
Key Features
______________________________

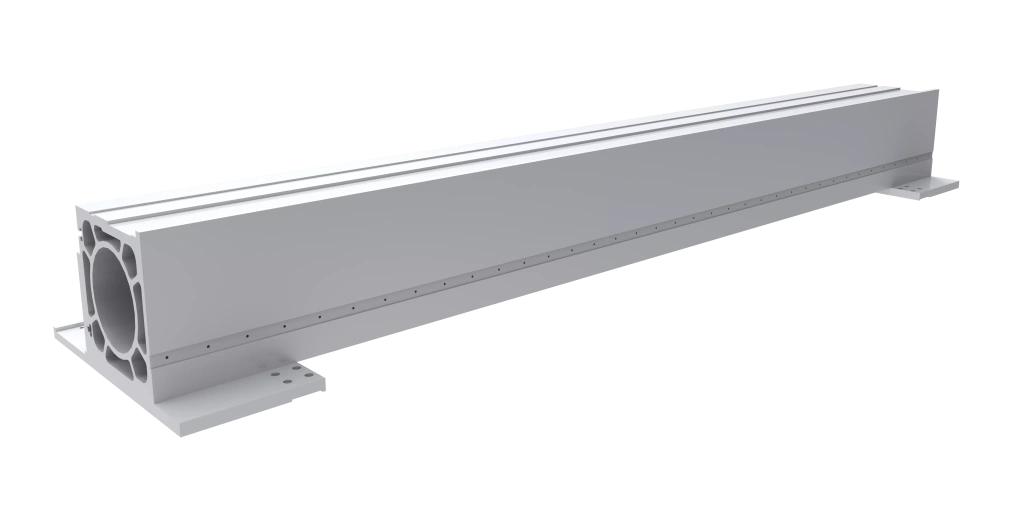

Cast aluminum Beam

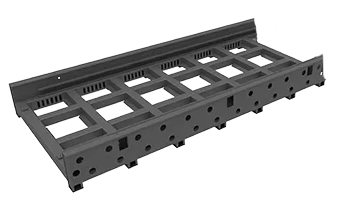

Welded machine frame
The machine frame is welded from carbon steel sheets with thicknesses ranging from 10-16 mm, followed by heat treatment and milling to ensure high precision at high speeds.

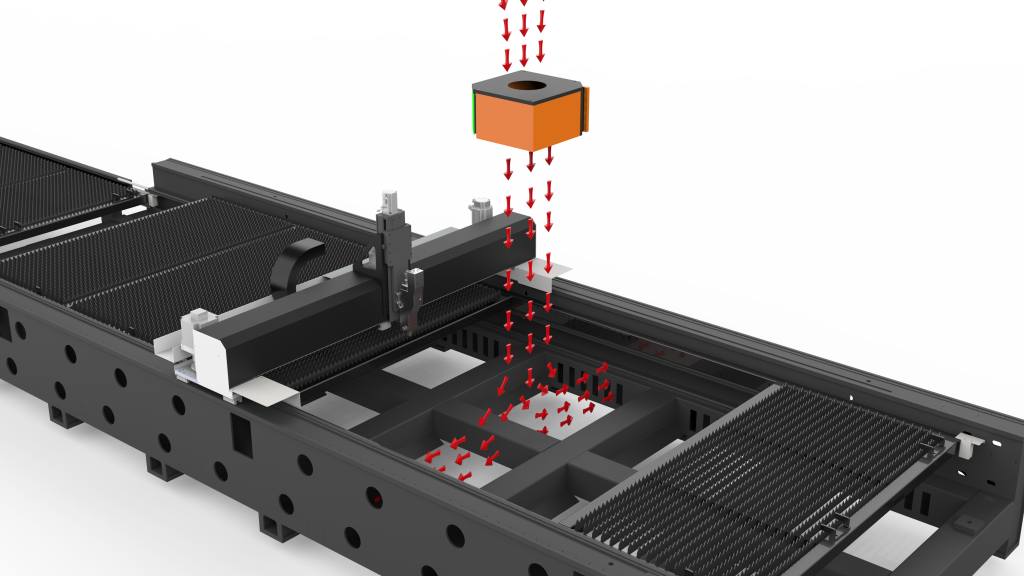

Advanced smoke exhaust system
The machine features an advanced smoke exhaust system that generates additional pressure inside while selectively opening the exhaust flaps in the area where the laser head is located, ensuring efficient smoke evacuation and maintaining a controlled atmosphere within the machine.

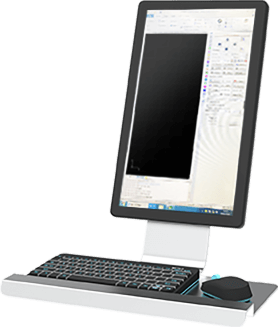

Advanced control system Cypcut
The 2D cutting software CypCutE is designed for mid-power EtherCAT cutting systems. CypCutE is user-friendly, feature-rich, stable, and reliable. It includes advanced features such as "Fine MicroJoint," "Flight-Cut," and "Circle Center" to meet various processing needs.

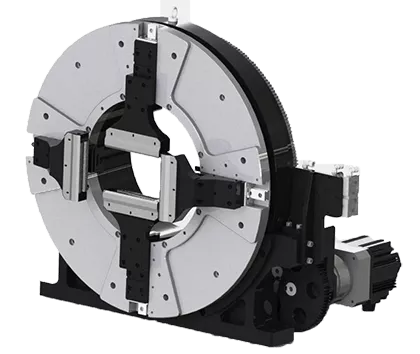

Pneumatic chuck
The machine is equipped with a full-stroke pneumatic chuck capable of clamping round tubes with diameters ranging from 15 to 220 mm. It features a high-precision vise combined with a high-precision servo reduction system, ensuring a remarkable cutting effect.

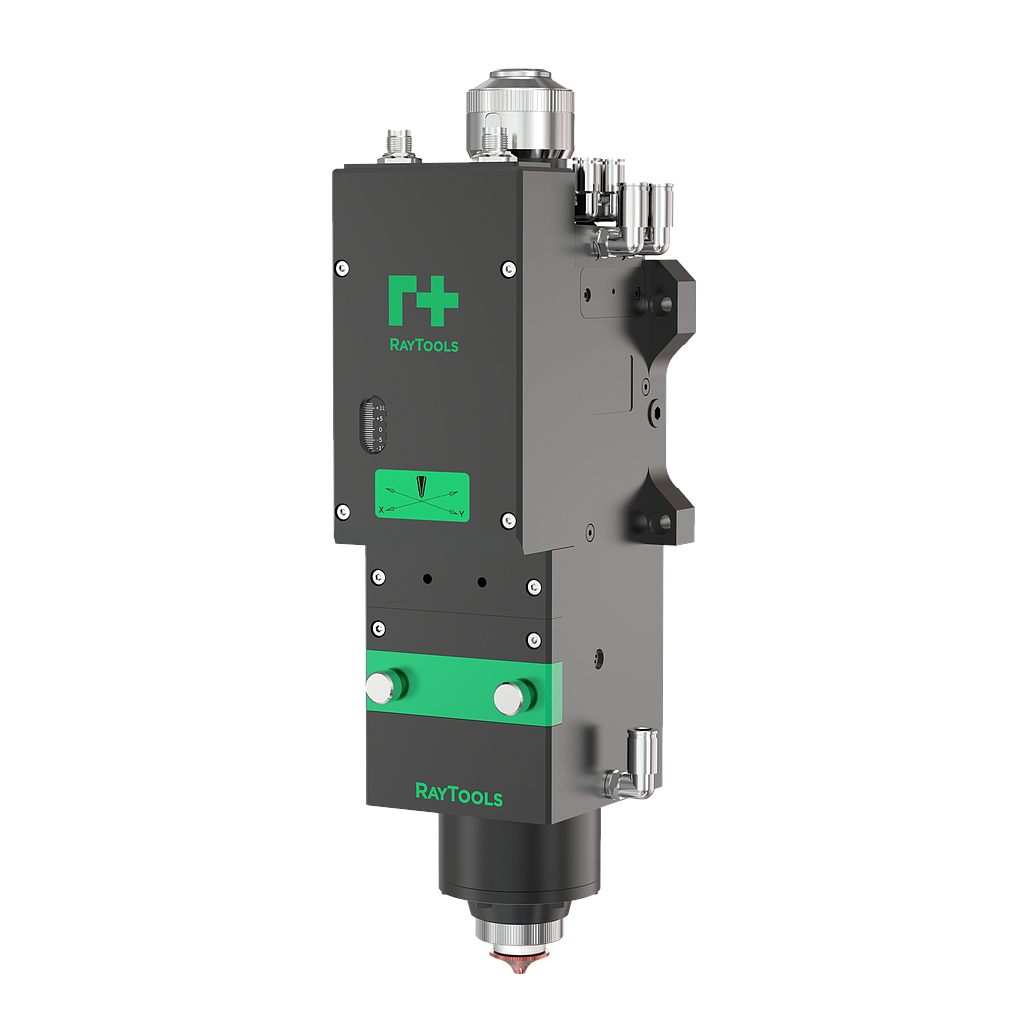

Laser head with autofocus
An advanced algorithm, integrated with sensors for monitoring lenses, temperature, and pressure with EtherCat communication, also enables rapid autofocusing, which is achieved by moving the collimating lens.
Technical data
______________________________
| Model | C1530 | C4020 | C6025 |
|---|---|---|---|
| Laser Power | 1500w, 3000w, 6000w | 1500w,3000w,6000w | 1500w,3000w,6000w |
| XYZ effective size mm | 1520*3050*150 | 2020*4020*150 | 2550*6050*150 |
| Max sheet weight | 900kg | 1800kg | 3500kg |
| XYZ-axis positioning accuracy | 0,05mm/m | 0,05mm/m | 0,05mm/m |
| XYZ-axis repositioning accuracy | 0,03mm | 0,03mm | 0,03 |
| Acceleration | 1,5G | 1,5G | 1,5G |
| Max speed X/Y-axis | 120m/min | 120m/min | 120m/min |
| Power connection 3phase | 220/380V 50Hz | 220/380V 50Hz | 220/380V 50Hz |
Choose the power you need
Max thickness Carbon steel with O2 - 20 mm
Max thickness Stainless steel with Air/N2 - 10 mm
Max thickness Aluminum with N2/Air - 8 mm
Max thickness Carbon steel with O2 - 25 mm
Max thickness Stainless steel with Air/N2 - 20 mm
Max thickness Aluminum with N2/Air - 16 mm
Max thickness Brass with N2 - 12 mm
Max thickness Copper - 6 mm
Max thickness Carbon steel with O2 - 40 mm
Max thickness Stainless steel with Air/N2 - 40 mm
Max thickness Aluminum with N2/Air - 40 mm
Max thickness Brass with N2 - 16 mm
Max thickness Copper - 10 mm
Nesting software
______________________________

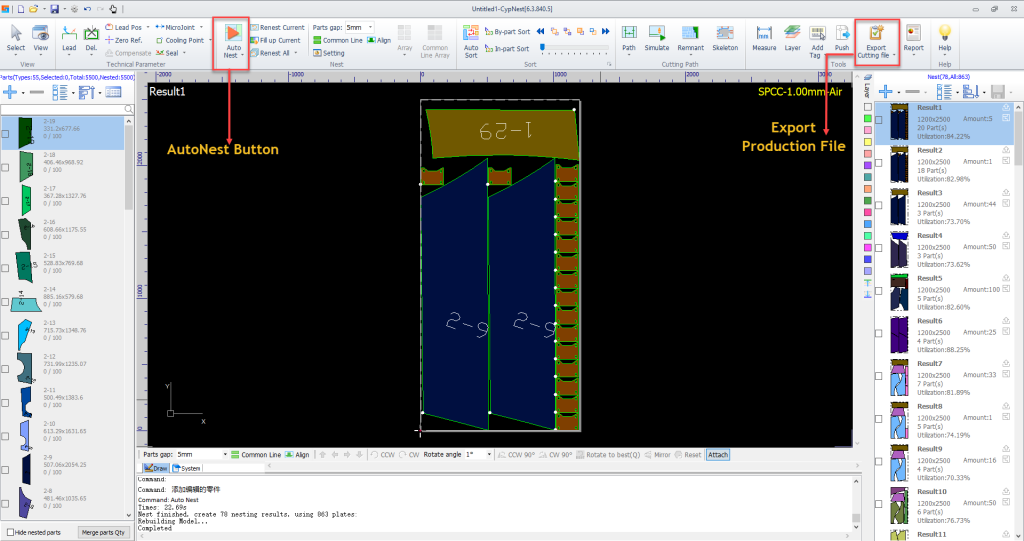

CypNest is an optimized nesting software designed for the laser sheet cutting system with HypCut. It incorporates advanced drawing modification functions, quick nesting, cutting path generation, analysis reports, and more to meet your production needs.
